Product

Feature

⚫ Detection under ground up to 10 m, no  excavation or manhole entry required.

⚫ Ultra-high precision detection with  localization accuracy ±2m.

⚫ High-precision GPS/BeiDou positioning  enables precise GIS mapping of cables.

⚫ 20-channel allowing route detection by a  single operator using one device.

⚫ Smart app and handheld terminal  synchronize data with the host.

Application

⚫ Optical cable maintenance

⚫ Fault locating

Product overview

The GFD series fiber optic cable finder utilizes the light impulse reflection effect in the optical fiber to convert the cable's tapping vibration signal into visual and  audio signals through optical interference demodulation. It accurately locates  and identifies target optical cables installed in manholes, tunnels, pipelines,  overhead poles, and other environments. The equipment features user-friendly  interfaces, simplicity, precision in locating, and non-damaging attributes to the  optical cable.

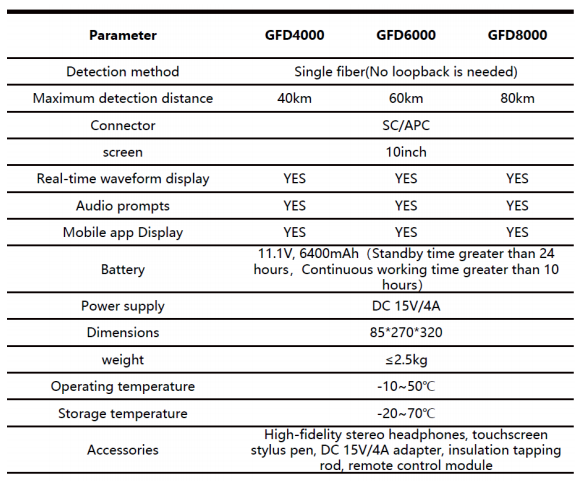

Specification

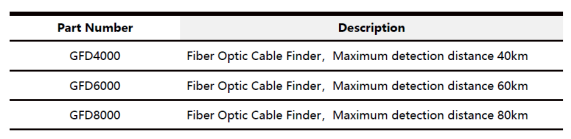

Ordering Information
